ZIT Display is a professional TFT LCD display company with superlative technology to be applied widely in the industrial field (including instruments, measuring system, elevator etc.), medical equipment, coffee machine, OA equipment, automation, marine, GPS navigator, telecoms, auto and other fields.

The critical characteristics of ZIT’s TFT displays:

※ High brightness

※ Wide operating & storage temperature

※ Wide viewing angle

※ High reliability

※ Various interface are available

     RGB, MCU (parallel/SPI/I2C), LVDS, MIPI etc.

※ Touch panel type

     RTP, CTP

※ Customized design

    FPC, Backlight, RTP/CTP, RTP/CTP assembly, Bezel, Interface, PCBA etc.

    We have various size of TFT displays from 1.44”to 10.1”with different technology as below list.


Details

ZIT Display is a professional TFT LCD display company with superlative technology to be applied widely in the industrial field (including instruments, measuring system, elevator etc.), medical equipment, coffee machine, OA equipment, automation, marine, GPS navigator, telecoms, auto and other fields.

The critical characteristics of ZIT’s TFT displays:

※ High brightness

※ Wide operating & storage temperature

※ Wide viewing angle

※ High reliability

※ Various interface are available

     RGB, MCU (parallel/SPI/I2C), LVDS, MIPI etc.

※ Touch panel type

     RTP, CTP

※ Customized design

    FPC, Backlight, RTP/CTP, RTP/CTP assembly, Bezel, Interface, PCBA etc.

    We have various size of TFT displays from 1.44”to 10.1”with different technology as below list.


  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)

    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

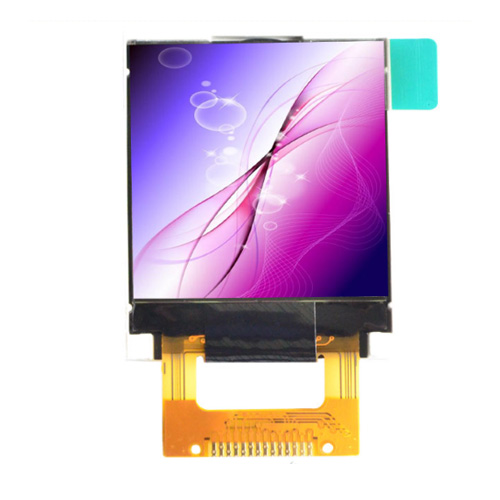

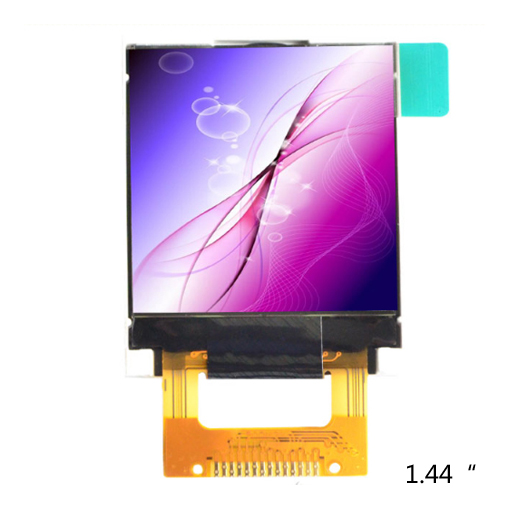

    ZT144ATN1P01 1.44” 128x128 25.4976*26.496mm 29.0*34.69*2.6mm 6 120 CPU(8 Bits) without -20~70 -30~ 80
    ZT144ATN1P61 1.44” 128x128 25.4976*26.496mm 29.0*34.69*2.6mm 6 120 CPU(8 Bits) without -20~70 -30~ 80
  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)

    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download
    ZT154ATN4S01 1.54” 240*240 27.72*27.72mm 31.5*35.0*2.3mm 6 400 SPI without -20~70 -30~ 80
    ZT154ATN4S01 1.54” 240*240 27.72*27.72mm 31.5*35.0*2.3mm IPS 400 SPI without -20~70 -30~ 80
    -20~70 -30~ 80
  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

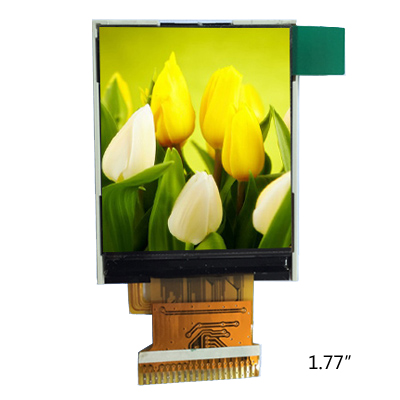

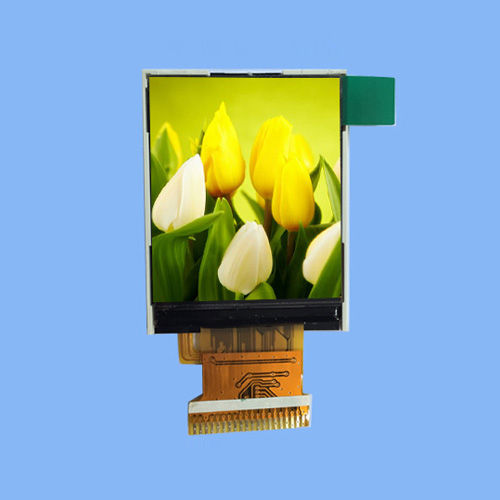

    ZT177ETN3P01 1.77” 128*160 28.03*35.04mm 34.7*46.7*2.5mm 6 320 CPU(8 Bits) without -20~70 -30~ 80














  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download
    ZT231ATN3P01 2.31” 320*240 46.75*35.06mm 50.8*45.8*2.3mm 6 300 CPU(16 Bits) without -20~70 -30~ 80














  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

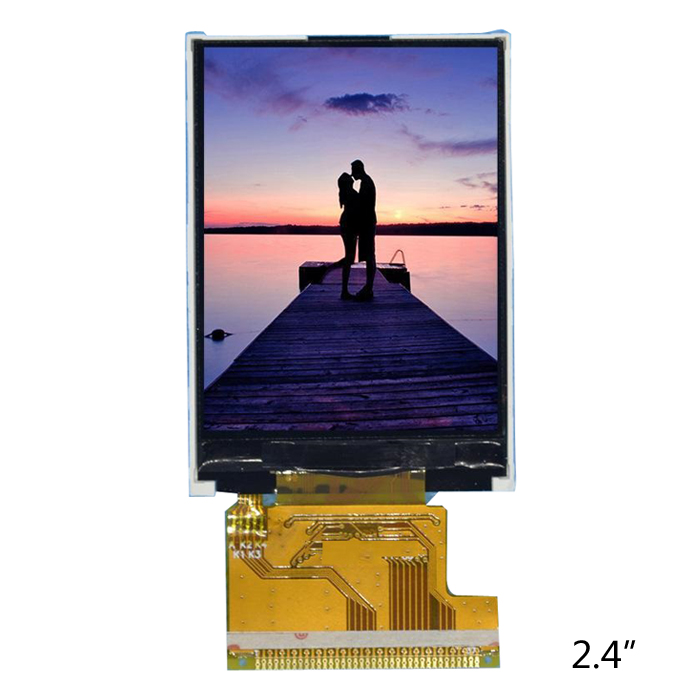

    ZT240ETN3P01 2.4” 240*320 36.72*48.96mm 42.72*60.16*2.55mm 6 350 CPU(8080 16/8 Bits) without -20~70 -30~ 80
    ZT240ETN4P01 2.4” 240*320 36.72*48.96mm 42.72*60.16*2.55mm 6 450 CPU(16 Bits) without -20~70 -30~ 80
    ZT240ETR3P01 2.4” 240*320 36.72*48.96mm 42.72*60.16*2.55mm 6 350 CPU(16 Bits) with RTP -20~70 -30~ 80
    ZT240ETN2P01 2.4” 240*320 36.72*48.96mm 42.72*60.16*2.55mm 6 250 CPU(16 Bits) without -20~70 -30~ 80
    ZT240ETR2P01 2.4” 240*320 36.72*48.96mm 42.72*60.16*2.55mm 6 250 CPU(16 Bits) with RTP -20~70 -30~ 80














  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

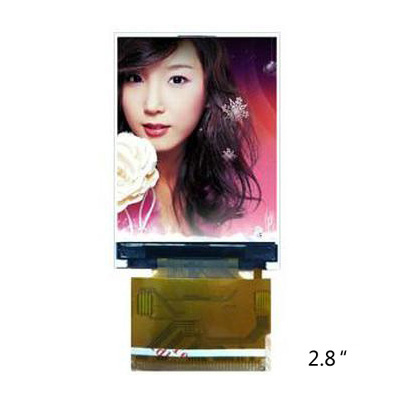

    ZT280ETN2P01 2.8” 240*320 43.2*57.6mm 50.0*69.2*2.2mm 6 250 CPU(16 Bits) without -20~70 -30~ 80
    ZT280ETR1P01
         		2.8”
         		240*320
         		43.2*57.6mm
         		50.0*69.2*3.3mm
         		6 180 CPU(16 Bits)
         		with RTP
         		-20~70
         		-30~ 80


  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

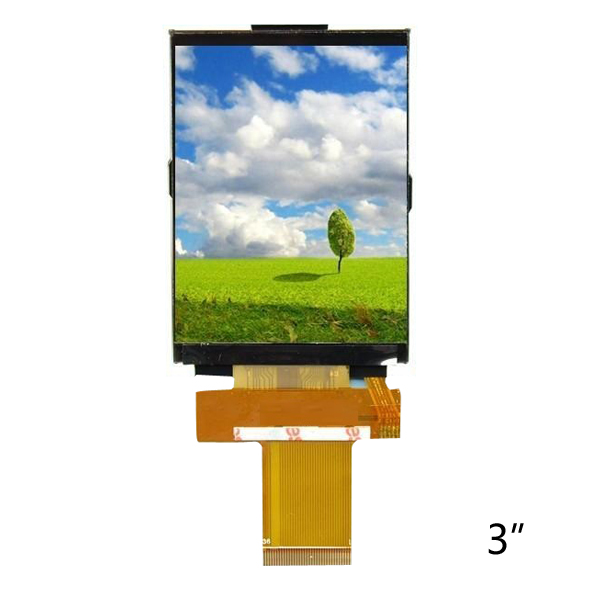

    ZT300ETN2P01 3.0” 240*400 38.88*64.8mm 45.04*77.0*2.6mm 6 250 CPU without -20~70 -30~ 80














  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

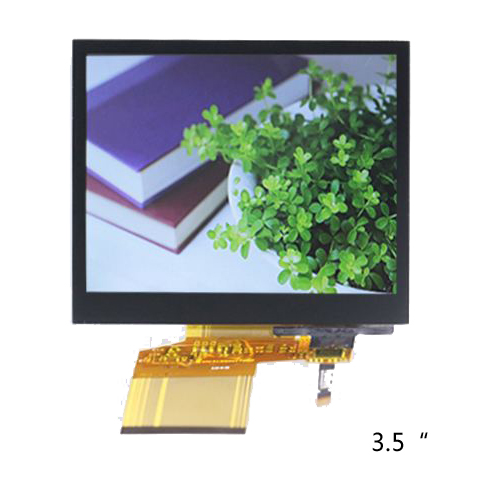

    ZT350FTN3S01 3.5” 320*480 48.96*73.44mm 54.66*82.94*2.1mm 6 360 4-SPI+ without -20~70 -30~ 80
    ZT350FTR3S01
         		3.5”
         		320*480
         		48.96*73.44mm
         		54.66*82.94*3.4mm
         		6 360 4-SPI+
         		with RTP
         		-20~70 -30~ 80
    ZT350FTC3S01
         		3.5”
         		320*480
         		48.96*73.44mm
         		54.66*82.94*3.5mm
         		6 360 4-SPI+
         		with CTP
         		-20~70 -30~ 80
    ZT350AIN5R01
         		3.5" IPS
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.15 mm
         		IPS
         		500 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT350AIR4R01
         		3.5" IPS
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*4.25 mm
         		IPS
         		400 Parallel RGB-24 bit
         		with RTP
         		-20~70 -30~ 80
    ZT350AIC4R01
         		3.5" IPS
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*5.08 mm
         		IPS
         		450 Parallel RGB-24 bit
         		with CTP
         		-20~70 -30~ 80
    ZT350ATN8R01
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		800 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT350ATC7R01
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*5.23 mm
         		12
         		700 Parallel RGB-24 bit
         		with CTP
         		-20~70 -30~ 80
    ZT350ATN5R01
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		550 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT350ATR6R01
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*4.4 mm
         		12
         		640 Parallel RGB-24 bit
         		with RTP
         		-20~70 -30~ 80
    ZT350ATN8R61
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		800 Parallel RGB-24 bit
         		without
         		-30~85 -30~ 85
    ZT350ATNBR61
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		1100 Parallel RGB-24 bit
         		without
         		-30~85 -30~ 85
    ZT350ATR6R61
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*4.4 mm
         		12
         		640 Parallel RGB-24 bit
         		with RTP
         		-30~85 -30~ 85
    ZT350ATR8R61
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*4.4 mm
         		12
         		800 Parallel RGB-24 bit
         		with RTP
         		-30~85 -30~ 85
    ZT350ATN4R01
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		450 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT350ATR3R01
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*4.4 mm
         		12
         		350 Parallel RGB-24 bit
         		with RTP
         		-20~70 -30~ 80
    ZT350ATC4R01
         		3.5" CMI
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*5.23 mm
         		12
         		400 Parallel RGB-24 bit
         		with CTP
         		-20~70 -30~ 80
    ZT350ATN3P01
         		3.5" GP
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		300 8 Bits i80 system interface
         		without
         		-20~70 -30~ 80
    ZT350ATR2P01
         		3.5" GP
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*4.4 mm
         		12
         		240 8 Bits i80 system interface
         		with RTP
         		-20~70 -30~ 80
    ZT350ATC2P01
         		3.5" GP
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*5.23 mm
         		12
         		270 8 Bits i80 system interface
         		with CTP
         		-20~70 -30~ 80
    ZT350ATN3P02
         		3.5" GP
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		300 8 Bits i80 system interface
         		without
         		-20~70 -30~ 80
    ZT350ATN8P01
         		3.5" GP
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*3.3 mm
         		12
         		800 8 Bits i80 system interface
         		without
         		-20~70 -30~ 80
    ZT350ATR6P01
         		3.5" GP
         		320*240
         		70.08*52.56 mm
         		76.9*63.9*4.4 mm
         		12
         		640 8 Bits i80 system interface
         		with RTP
         		-20~70 -30~ 80
  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

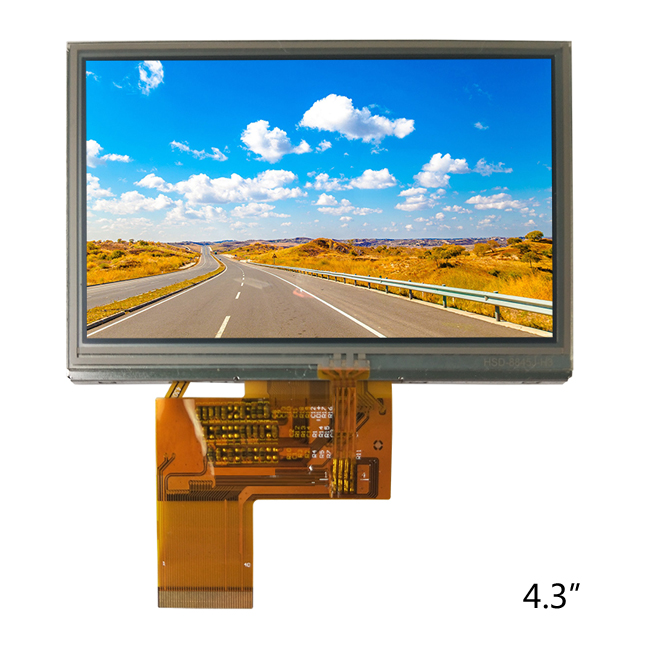

    ZT430ATNAR01 4.3" CMI 480*272 95.04*53.856 mm 105.5*67.2*3.95 mm 12 1000 Parallel RGB-24 bit without -20~70 -30~ 80
    ZT430ATR8R01
         		4.3" CMI
         		480*272
         		95.04*53.856 mm
         		105.5*67.2*5.05 mm
         		12
         		800 Parallel RGB-24 bit
         		With RTP
         		-20~70 -30~ 80
    ZT430ATC9R01
         		4.3" CMI
         		480*272
         		95.04*53.856 mm
         		105.5*67.2*5.85 mm
         		12
         		900 Parallel RGB-24 bit
         		With CTP
         		-20~70 -30~ 80
    ZT430ATN5R01
         		4.3" CMI
         		480*272
         		95.04*53.856 mm
         		105.5*67.2*3.95 mm
         		12
         		500 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT430ATR4R01
         		4.3" CMI
         		480*272
         		95.04*53.856 mm
         		105.5*67.2*5.05 mm
         		12
         		400 Parallel RGB-24 bit
         		With RTP
         		-20~70 -30~ 80
    ZT430ATC4R01
         		4.3" CMI
         		480*272
         		95.04*53.856 mm
         		105.5*67.2*5.85 mm
         		12
         		450 Parallel RGB-24 bit
         		With CTP
         		-20~70 -30~ 80
    ZT430ATN3R01
         		4.3" CMI
         		480*272
         		95.04*53.856 mm
         		105.5*67.2*3.95 mm
         		12
         		370 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT430ATR3R01
         		4.3" CMI
         		480*272
         		95.04*53.856 mm
         		105.5*67.2*5.05 mm
         		12
         		300 Parallel RGB-24 bit
         		With RTP
         		-20~70 -30~ 80
    ZT430ATN3R02
         		4.3" CPT
    		480*272
         		95.04*53.856 mm
         		105.5*64.2*2.9mm
         		12
         		300 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT430ATR2R01
         		4.3" CPT
    		480*272
         		95.04*53.856 mm
         		105.5*64.2*4.1mm
         		12
         		250 Parallel RGB-24 bit
         		With RTP
         		-20~70 -30~ 80
    ZT430ATN5R02
         		4.3" CPT
    		480*272
         		95.04*53.856 mm
         		105.5*64.2*2.9mm
         		12
         		500 Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT430ATR4R02
         		4.3" CPT
    		480*272
         		95.04*53.856 mm
         		105.5*64.2*4.1mm
         		12
         		450 Parallel RGB-24 bit
         		With RTP
         		-20~70 -30~ 80
    ZT430ATC4R02
         		4.3" CPT
    		480*272
         		95.04*53.856 mm
         		105.5*64.2*4.92mm
         		12
         		400 Parallel RGB-24 bit
         		With CTP
         		-20~70 -30~ 80
  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

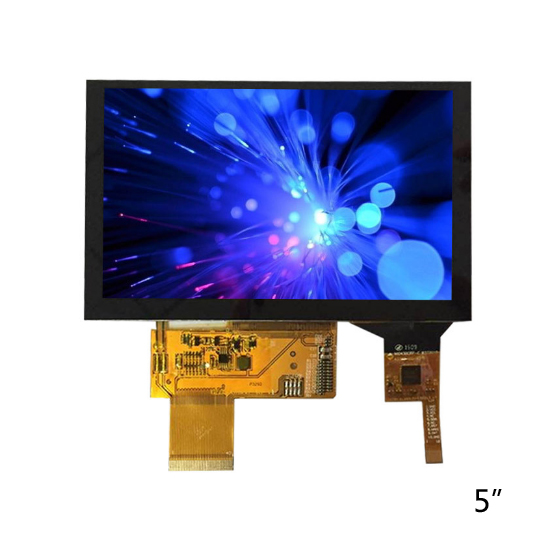

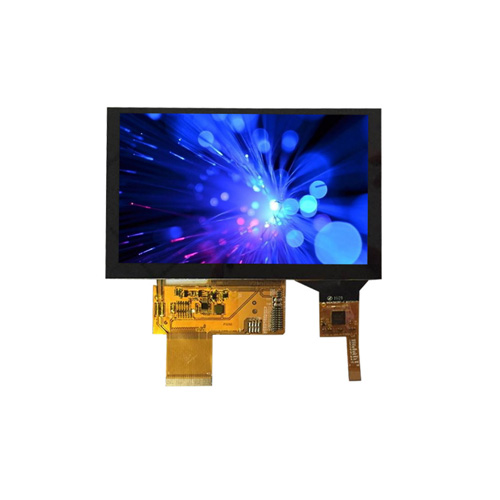

    ZT500BTN2R01 5.0" HSD 800*480 108*64.8 mm 118.5*77.55*3.4 mm 12 TYP:250 Parallel RGB-24 bit without -20~70 -30~ 80
    ZT500BTR2R01
         		5.0" HSD
         		800*480
         		108*64.8 mm
         		118.5*77.55*4.5 mm
         		12
         		TYP:200
         		Parallel RGB-24 bit
         		with RTP
         		-20~70 -30~ 80
    ZT500BTC2R01
         		5.0" HSD
         		800*480
         		108*64.8 mm
         		118.5*77.55*5.65 mm
         		12
         		TYP:220
         		Parallel RGB-24 bit
         		with CTP
         		-20~70 -30~ 80
    ZT500BTN5R01
         		5.0" HSD
         		800*480
         		108*64.8 mm
         		118.5*77.55*3.4mm
         		12
         		TYP:500
         		Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT500BTR4R01
         		5.0" HSD
         		800*480
         		108*64.8 mm
         		118.5*77.55*4.5 mm
         		12
         		TYP:400
         		Parallel RGB-24 bit
         		with RTP
         		-20~70 -30~ 80
    ZT500BTC4R01
         		5.0" HSD
         		800*480
         		108*64.8 mm
         		118.5*77.55*5.65 mm
         		12
         		TYP:420
         		Parallel RGB-24 bit
         		with CTP
         		-20~70 -30~ 80
    ZT500BTNAR61
         		5.0" CPT
         		800*480
         		108*64.9 mm
         		118.5*77.55*2.8mm
         		12
         		TYP:1000
         		Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT500BTN5R61
         		5.0" CPT
         		800*480
         		108*64.9 mm
         		118.5*77.55*2.8mm 12
         		TYP:500
         		Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT500BTR4R61
         		5.0" CPT
         		800*480
         		108*64.9 mm
         		118.5*77.55*3.9mm
         		12
         		TYP:400
         		Parallel RGB-24 bit
         		with RTP
         		-20~70 -30~ 80
    ZT500BTNAR01
         		5.0" CPT
         		800*480
         		108*64.9 mm
         		118.5*77.55*2.8mm
         		12
         		TYP:1000
         		Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
    ZT500BTR8R01
         		5.0" CPT
         		800*480
         		108*64.9 mm
         		118.5*77.55*3.9mm
         		12
         		TYP:800
         		Parallel RGB-24 bit
         		with RTP
         		-20~70 -30~ 80
    ZT500BTC9R01
         		5.0" CPT
         		800*480
         		108*64.9 mm
         		118.5*77.55*5.05mm
         		12
         		TYP:900
         		Parallel RGB-24 bit
         		with CTP
         		-20~70 -30~ 80
    ZT500BTN7R01
         		5.0" CPT
         		800*480
         		108*64.9 mm
         		118.5*77.55*2.8mm
         		12
         		TYP:750
         		Parallel RGB-24 bit
         		without
         		-20~70 -30~ 80
  • ZIT Part No. size Resolution Active Area LCM Outline Viewing
    Direction     		L (cd/m^2)
    (TYP)     		Interface Touch Panel 工作溫度 存儲溫度 Inquiry Download
    ZT570ATN7R01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*13 mm 6 700 Parallel RGB-18 bit Without -20～+70 -30～+80
    ZT570ATC6R01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*14.9 mm 6 630 Parallel RGB-18 bit With CTP -20～+70 -30～+80
    ZT570ATR5R01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*14.5 mm 6 560 Parallel RGB-18 bit With RTP -20～+70 -30～+80
    ZT570ATNCR01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*12.8 mm 12 1200 Parallel RGB-18 bit Without -20～+70 -30～+80
    ZT570ATCAR01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*14.9 mm 12 1000 Parallel RGB-18 bit With CTP -20～+70 -30～+80
    ZT570ATN8P01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*13 mm 12 800 CPU 8080 8bit Without -20～+70 -30～+80
    ZT570ATR6P01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*14.5 mm 12 600 CPU 8080 8bit With RTP -20～+70 -30～+80
    ZT570ATC6P01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*14.9 mm 12 650 CPU 8080 8bit With CTP -20～+70 -30～+80
    ZT570ATNCP01 5.7"QVGA 320*240 115.2*86.4 mm 144*104.6*13 mm 12 1200 CPU 8080 8bit Without -20～+70 -30～+80
    ZT570BTN9L01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*13 mm 12 900 LVDS Without -20～+70 -30～+80
    ZT570BTR7L01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.5 mm 12 700 LVDS With RTP -20～+70 -30～+80
    ZT570BTC8L01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.9 mm 12 800 LVDS With CTP -20～+70 -30～+80
    ZT570BTN6L01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*13 mm 6 650 LVDS Without -20～+70 -30～+80
    ZT570BTR5L01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.5 mm 12 500 LVDS With RTP -20～+70 -30～+80
    ZT570BTN9L61 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*13 mm 6 900 LVDS Without -30～+85 -30～+85
    ZT570BTR7L61 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.5 mm 12 700 LVDS With RTP -30～+85 -30～+85
    ZT570BTN9R01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*13 mm 12 900 Parallel RGB-18 bit Without -20～+70 -30～+80
    ZT570BTR7R01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.5 mm 12 700 Parallel RGB-18 bit With RTP -20～+70 -30～+80
    ZT570BTC8R01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.9 mm 12 800 Parallel RGB-18 bit With CTP -20～+70 -30～+80
    ZT570BTN6R01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*13 mm 12 650 Parallel RGB-18 bit Without -20～+70 -30～+80
    ZT570BTR5R01 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.5 mm 12 500 Parallel RGB-18 bit With RTP -20～+70 -30～+80
    ZT570BTN9R61 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*13 mm 6 900 Parallel RGB-18 bit Without -30～+85 -30～+85
    ZT570BTR7R61 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*14.5 mm 6 700 Parallel RGB-18 bit With RTP -30～+85 -30～+85
    ZT570BTC9R61 5.7"VGA 640*480 115.2*86.4 mm 144*104.6*13 mm 6 900 Parallel RGB-18 bit With CTP -30～+85 -30～+85
  • ZIT Part No. size Resolution Active Area LCM Outline Viewing
    Direction     		L (cd/m^2)
    (TYP)     		Interface Touch Panel 工作溫度 存儲溫度 Inquiry Download

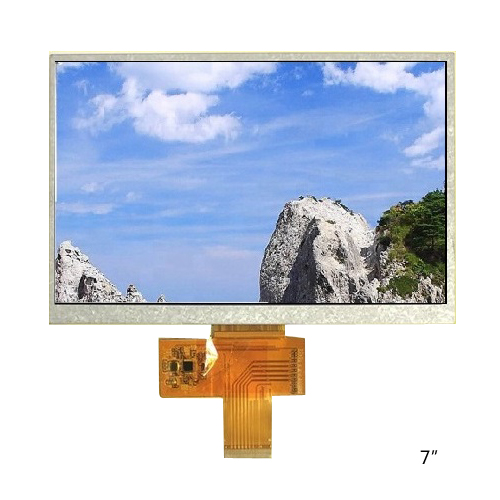

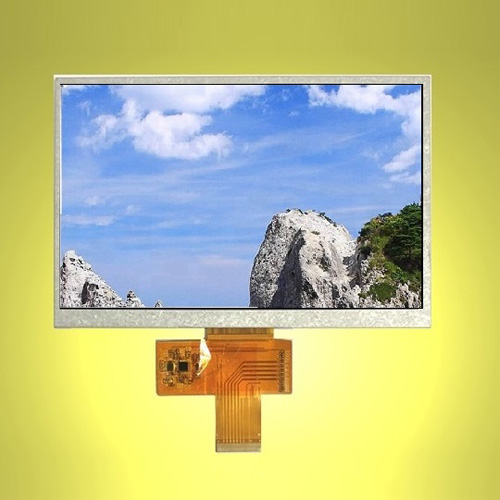

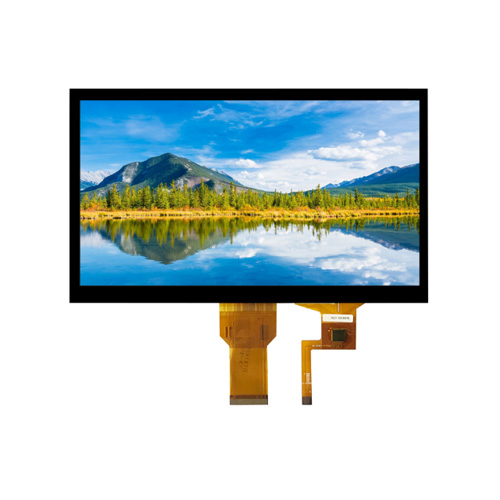

    ZT700ATN5R61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*9.65 mm 12 500 Parallel RGB-18 bit Without -30～+85 -30～+85
    ZT700ATR4R61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*11.25 mm 12 400 Parallel RGB-18 bit With RTP -30～+85 -30～+85
    ZT700ATN5L61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*9.65 mm 12 500 LVDS Without -30～+85 -30～+85
    ZT700ATR4L61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*11.25 mm 12 400 LVDS With RTP -30～+85 -30～+85
    ZT700ATNAR01 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*9.65 mm 12 1000 Parallel RGB-18 bit Without -20～+70 -30～+80
    ZT700ATR8R01 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*11.25 mm 12 800 Parallel RGB-18 bit With RTP -20～+70 -30～+80
    ZT700ATC9R01 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*11.55 mm 12 900 Parallel RGB-18 bit With CTP -20～+70 -30～+80
    ZT700ATNAR61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*9.65 mm 12 1000 Parallel RGB-18 bit Without -30～+85 -30～+85
    ZT700ATR8R61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*11.25 mm 12 800 Parallel RGB-18 bit With RTP -30～+85 -30～+85
    ZT700ATNAL01 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*9.65 mm 12 1000 LVDS Without -20～+70 -30～+80
    ZT700ATR8L01 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*11.25 mm 12 800 LVDS With RTP -20～+70 -30～+80
    ZT700ATC8L01 INX 7"(2+1) 800*480 152.4*91.44 mm 174.4*113.44*11.55 mm 12 880 LVDS With CTP -20～+70 -30～+80
    ZT700ATNAL61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*9.65 mm 12 1000 LVDS Without -30～+85 -30～+85
    ZT700ATR8L61 INX 7"(2+1) 800*480 152.4*91.44 mm 166.6*109.4*11.25 mm 12 800 LVDS With RTP -30～+85 -30～+85
    ZT700ATN3R01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*5.4 mm 12 350 Parallel RGB-18 bit Without -20～+70 -30～+80
    ZT700ATR2R01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*6.5 mm 12 280 Parallel RGB-18 bit With RTP -20～+70 -30～+80
    ZT700ATC3R01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*7.3 mm 12 320 Parallel RGB-18 bit With CTP -20～+70 -30～+80
    ZT700ATN5R01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*5.4 mm 12 550 Parallel RGB-18 bit Without -20～+70 -30～+80
    ZT700ATR4R01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*6.5 mm 12 440 Parallel RGB-18 bit With RTP -20～+70 -30～+80
    ZT700ATC5R01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*7.3 mm 12 500 Parallel RGB-18 bit With CTP -20～+70 -30～+80
    ZT700ATN5L01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*5.4 mm 12 550 LVDS Without -20～+70 -30～+80
    ZT700ATR4L01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*6.5 mm 12 440 LVDS With RTP -20～+70 -30～+80
    ZT700ATC5L01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*7.3 mm 12 500 LVDS With CTP -20～+70 -30～+80
    ZT700ATN3L01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*5.4 mm 12 350 LVDS Without -20～+70 -30～+80
    ZT700ATR2L01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*6.5 mm 12 280 LVDS With RTP -20～+70 -30～+80
    ZT700ATC3L01 HSD 7"COG 800*480 153.6*86.64 mm 165*104*5.4 mm 12 320 LVDS With CTP -20～+70 -30～+80
    ZT700BIN3L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 164.9*100*2.8mm IPS 300 LVDS without -20～+70 -30～+80
    ZT700BIR2L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 164.9*100*3.85mm IPS 240 LVDS with RTP -20～+70 -30～+80
    ZT700BIC2L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 164.9*100*5.12mm IPS 270 LVDS with CTP -20～+70 -30～+80
    ZT700BIN5L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 164.9*100*2.8mm IPS 500 LVDS without -20～+70 -30～+80
    ZT700BIR4L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 164.9*100*3.85mm IPS 400 LVDS with RTP -20～+70 -30～+80
    ZT700BIC4L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 164.9*100*5.12mm IPS 450 LVDS with CTP -20～+70 -30～+80
    ZT700BINAL01 HSD 7.0 IPS 1024*600 154.21*85.92mm 170*110*6.85mm IPS 1000 LVDS without -20～+70 -30～+80
    ZT700BIR8L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 170*110*7.9mm IPS 800 LVDS with RTP -20～+70 -30～+80
    ZT700BIC9L01 HSD 7.0 IPS 1024*600 154.21*85.92mm 170*110*9.18mm IPS 900 LVDS with CTP -20～+70 -30～+80
    ZT700BINCL01 HSD 7.0 IPS 1024*600 154.21*85.92mm 170*110*6.85mm IPS 1200 LVDS without -20～+70 -30～+80

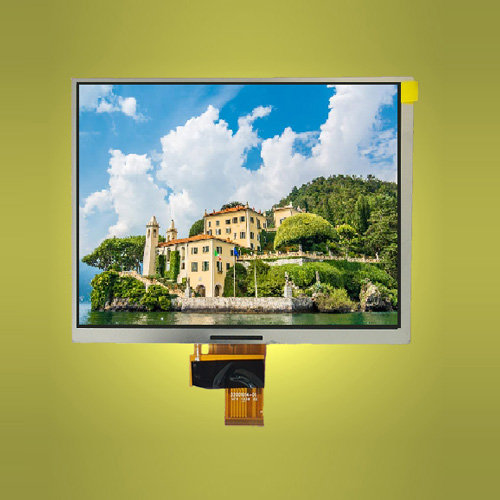

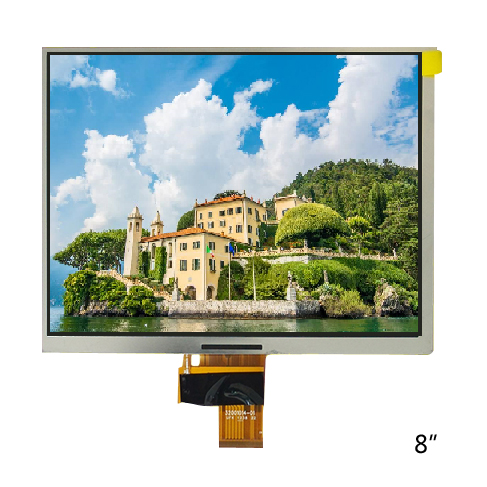

  • ZIT Part No. Resolution Active Area LCM Outline Viewing
    Direction     		L (cd/m^2)
    (TYP)     		Interface Touch Panel 工作溫度 存儲溫度 Inquiry Download
    ZT800ATN5L01 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 500 LVDS without -20～+70 -30～+80
    ZT800ATR4L01 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 400 LVDS with RTP -20～+70 -30～+80
    ZT800ATC4L01 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 450 LVDS with CTP -20～+70 -30～+80
    ZT800ATNAL01 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 1000 LVDS without -20～+70 -30～+80
    ZT800ATR8L01 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 800 LVDS with RTP -20～+70 -30～+80
    ZT800ATC9L01 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 900 LVDS with CTP -20～+70 -30～+80
    ZT800ATNDL01 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 1300 LVDS without -20～+70 -30～+80
    ZT800ATRAL01 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 1040 LVDS with RTP -20～+70 -30～+80
    ZT800ATCCL01 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 1200 LVDS with CTP -20～+70 -30～+80
    ZT800ATN5R01 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 500 Parallel RGB-18 bit without -20～+70 -30～+80
    ZT800ATR4R01 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 400 Parallel RGB-18 bit with RTP -20～+70 -30～+80
    ZT800ATC4R01 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 450 Parallel RGB-18 bit with CTP -20～+70 -30～+80
    ZT800ATNAR01 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 1000 Parallel RGB-18 bit without -20～+70 -30～+80
    ZT800ATR8R01 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 800 Parallel RGB-18 bit with RTP -20～+70 -30～+80
    ZT800ATC9R01 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 900 Parallel RGB-18 bit with CTP -20～+70 -30～+80
    ZT800ATNDR01 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 1300 Parallel RGB-18 bit without -20～+70 -30～+80
    ZT800ATRAR01 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 1040 Parallel RGB-18 bit with RTP -20～+70 -30～+80
    ZT800ATCCR01 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 1200 Parallel RGB-18 bit with CTP -20～+70 -30～+80
    ZT800ATN5R02 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 500 Parallel RGB-24bit without -20～+70 -30～+80
    ZT800ATR4R02 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 400 Parallel RGB-24bit with RTP -20～+70 -30～+80
    ZT800ATC4R02 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 450 Parallel RGB-24bit with CTP -20～+70 -30～+80
    ZT800ATNAR02 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 1000 Parallel RGB-24bit without -20～+70 -30～+80
    ZT800ATR8R02 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 800 Parallel RGB-24bit with RTP -20～+70 -30～+80
    ZT800ATC9R02 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 900 Parallel RGB-24bit with CTP -20～+70 -30～+80
    ZT800ATNDR02 800*600 162.0*121.5mm 183.0*141.0*5.6mm 12 1300 Parallel RGB-24bit without -20～+70 -30～+80
    ZT800ATRAR02 800*600 162.0*121.5mm 183.0*141.0*6.65mm 12 1040 Parallel RGB-24bit with RTP -20～+70 -30～+80
    ZT800ATCCR02 800*600 162.0*121.5mm 183.0*141.0*7.93mm 12 1200 Parallel RGB-24bit with CTP -20～+70 -30～+80
    ZT800CIN3L01 1024*768 162.05*121.54mm 174.0*136.0*2.45mm IPS 300 LVDS without -10～+50 -20～+60
    ZT800CIR2L01 1024*768 162.05*121.54mm 174.0*136.0*3.5mm IPS 240 LVDS with RTP -10～+50 -20～+60
    ZT800CIC2L01 1024*768 162.05*121.54mm 174.0*136.0*4.78mm IPS 270 LVDS with CTP -10～+50 -20～+60
    ZT800CIN6L01 1024*768 162.05*121.54mm 175.7*137.85*5.6mm IPS 600 LVDS without -10～+50 -20～+60
    ZT800CIR4L01 1024*768 162.05*121.54mm 175.7*137.85*6.65mm IPS 480 LVDS with RTP -10～+50 -20～+60
    ZT800CIC4L01 1024*768 162.05*121.54mm 175.7*137.85*7.93mm IPS 540 LVDS with CTP -10～+50 -20～+60
    ZT800CIN8L01 1024*768 162.05*121.54mm 175.7*137.85*5.6mm IPS 800 LVDS without -10～+50 -20～+60
    ZT800CIR6L01 1024*768 162.05*121.54mm 175.7*137.85*6.65mm IPS 650 LVDS with RTP -10～+50 -20～+60
    ZT800CIC7L01 1024*768 162.05*121.54mm 175.7*137.85*7.93mm IPS 700 LVDS with CTP -10～+50 -20～+60
    ZT800CINBL01 1024*768 162.05*121.54mm 175.7*137.85*5.6mm IPS 1100 LVDS without -10～+50 -20～+60
    ZT800CIR8L01 1024*768 162.05*121.54mm 175.7*137.85*6.65mm IPS 880 LVDS with RTP -10～+50 -20～+60
    ZT800CIC9L01 1024*768 162.05*121.54mm 175.7*137.85*7.93mm IPS 950 LVDS with CTP -10～+50 -20～+60












  • ZIT Part No. Size Resolution Active Area LCM Outline Viewing Direction
    (U/D/L/R)

    L (cd/m^2)
    (TYP)

    		Interface Touch Panel Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Inquiry


    		Download

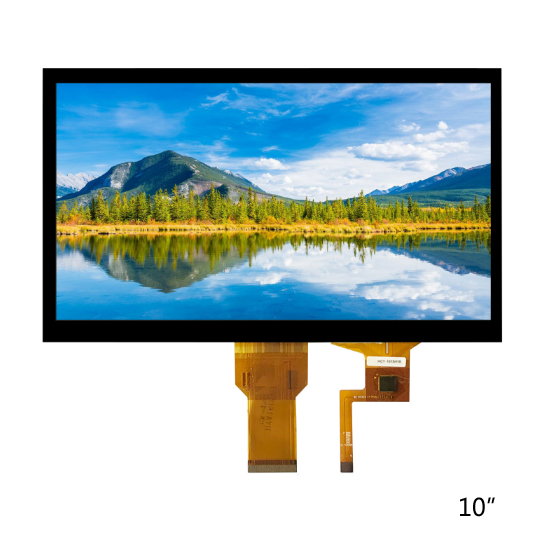

    ZTA10BTNAL01 10.1"TN 1280*800 216.96*135.6mm 230.56*155.01*6.9mm 12 1000 LVDS without -20~70 -30~ 80
    ZTA10BTC9L01
         		10.1"TN
         		1280*800
         		216.96*135.6mm
         		230.56*155.01*9.15mm
         		12
         		900 LVDS
         		with CTP
         		-20~70 -30~ 80
    ZTA10BTNFL01
         		10.1"TN
         		1280*800
         		216.96*135.6mm
         		230.56*155.01*6.9mm
         		12
         		1500 LVDS
         		without
         		-20~70 -30~ 80
    ZTA10BTCDL01
         		10.1"TN
         		1280*800
         		216.96*135.6mm
         		230.56*155.01*9.15mm
         		12
         		1300 LVDS
         		with CTP
         		-20~70 -30~ 80
    ZTA10BIN5L01
         		10.1" IPS
         		1280*800
         		216.96*135.6mm
         		229.46* 149.1*5.7 mm
         		IPS
         		500 LVDS
         		without
         		-20~70 -30~ 80
    ZTA10BIC4L01
         		10.1" IPS
         		1280*800
         		216.96*135.6mm
         		229.46* 149.1*8.02 mm
         		IPS
         		450 LVDS
         		with CTP
         		-20~70 -30~ 80
    ZTA10BINAL01
         		10.1" IPS
         		1280*800
         		216.96*135.6mm
         		229.46* 149.1*5.7 mm
         		IPS
         		1000 LVDS
         		without
         		-20~70 -30~ 80
    ZTA10BIC9L01
         		10.1" IPS
         		1280*800
         		216.96*135.6mm
         		229.46* 149.1*8.02 mm
         		IPS
         		900 LVDS
         		with CTP
         		-20~70 -30~ 80
    ZTA10BINCL01
         		10.1" IPS
         		1280*800
         		216.96*135.6mm
         		229.46* 149.1*5.7 mm
         		IPS
         		1200 LVDS
         		without
         		-20~70 -30~ 80
    ZTA10BICAL01
         		10.1" IPS
         		1280*800
         		216.96*135.6mm
         		229.46* 149.1*8.02 mm
         		IPS
         		1080 LVDS
         		with CTP
         		-20~70 -30~ 80
Copyright ©2018-2028 ZIT Technology LimitedTechnical support：Emore
